Leaky Feeder Cable VHF 75 ohms Raido Communication Mine Facilities Cables

Shaoxing Libo Electric Co., Ltd

Leaky Feeder Cable VHF 75 ohms Raido Communication Mine Facilities Cables

  • 1
  • 2
  • 3

Brand Name : Libo

Model Number : Coal mine leaky feeder cable

Certification : CE, ISO9000, ISO14001,RoSH, MSHA

Place of Origin : China

MOQ : 0.1KM

Price : Call or e-mail to get the latest price

Payment Terms : T/T, L/C,DP, D/A

Supply Ability : 1000 KM per month

Delivery Time : 5 days

Packaging Details : 350m/500m/1000m or according to client’s request

Inner conductor : Solid bare copper

Outer conductor : copper wire

Jacket : Flame retardant PVC or LSZH

Color : Yellow

Contact Now

Leaky Feeder Cable VHF 75 ohms Raido Communication Mine Facilities Cables

Quick Details:

  • MSHA Certificate
  • Solid Oxygen Free Copper Inner Conductor
  • Bare Copper Wire Braiding
  • Low Smoke Halogen Free Jacket or Fire Retardant Jacket
  • VHF Leaky Feeder Cable
  • 75 Ohm Leaky Feeder Cable

Description:

Our Leaky feeder cable is widely used in mines, tunnels of Unites States, Canada, Australia, and Chile. We also have Low Samoke Zero Halogan jacket for this leaky feeder cable.

MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

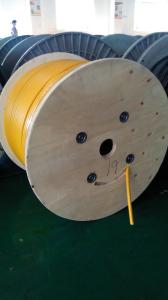

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available

Applications:

  • Mines underground communication system
  • metro stations
  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection

Specification:

Inner conductor

2.31mm bare copper

Dielectric

9.50mm

Outer conductor

16x0.6 bare copper wire

Outer jacket

15.0mm+/-0.2mm

Frequency

5 to 500MHZ

impedance

75 ohms

Attenuation @160 MHZ

4.2dB/100m

DC resistance inner conductor

<4.5 ohm/km

DC resistance outer conductor

<4.1 ohm/km

capacitance

54 pF/m

Insulation resistance

>10.4m ohm/km

MIN. bend radius

150mm

Operating temperature

-40 to +70 centigrade

Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.Leaky Feeder Cable VHF 75 ohms Raido Communication Mine Facilities Cables
